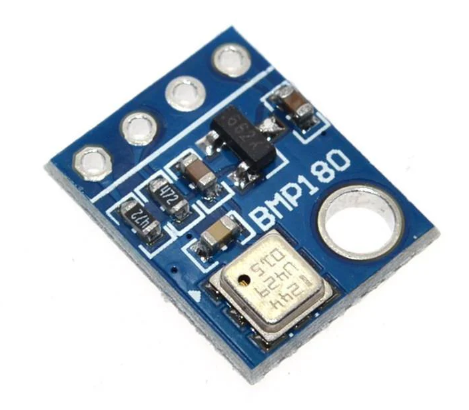

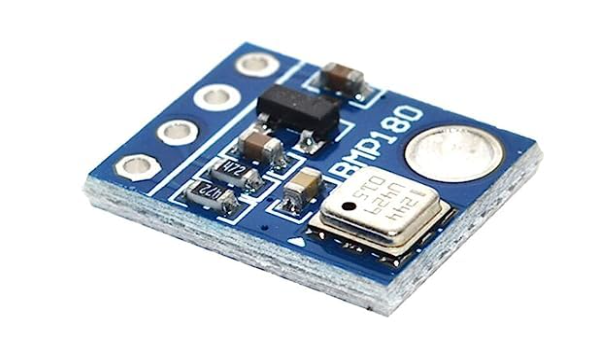

BMP180 Pressure Sensor Module

Product Description

The BMP180 Digital Barometric Pressure Sensor Module is a high-precision sensor designed to measure atmospheric pressure, altitude, and temperature. Based on Bosch's BMP180 sensor, this compact module is ideal for weather monitoring stations, GPS navigation systems, drones, altitude measurement projects, and various Arduino, ESP32, ESP8266, Raspberry Pi, and IoT applications.

The sensor communicates through the I2C interface, making it easy to integrate with microcontrollers and development boards. With its low power consumption and accurate measurements, the BMP180 is a popular choice for both hobbyists and professional electronics projects.

Features

• High-precision atmospheric pressure measurement
• Built-in temperature sensing capability
• Altitude calculation based on pressure readings
• I2C digital communication interface
• Low power consumption
• Compact and lightweight design
• Compatible with Arduino, Raspberry Pi, ESP32, ESP8266, and other microcontrollers
• Factory-calibrated for reliable performance

Specifications

• Operating Voltage: 3.3V – 5V
• Pressure Range: 300 hPa to 1100 hPa
• Pressure Accuracy: ±1 hPa
• Temperature Measurement Range: -40°C to +85°C
• Communication Protocol: I2C

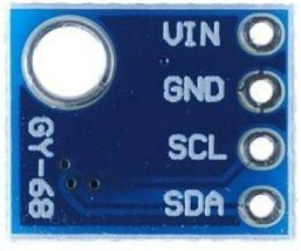

• Interface Pins: VCC, GND, SDA, SCL
• Sensor Type: Digital Barometric Pressure Sensor

Applications

• Weather Monitoring Systems
• Altitude Measurement Projects
• Drones and UAVs
• GPS Navigation Enhancement
• Environmental Monitoring
• IoT and Smart Home Projects
• Educational and Research Projects

Package Includes

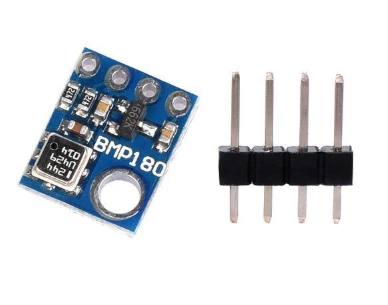

• 1 × BMP180 Digital Barometric Pressure Sensor Module
