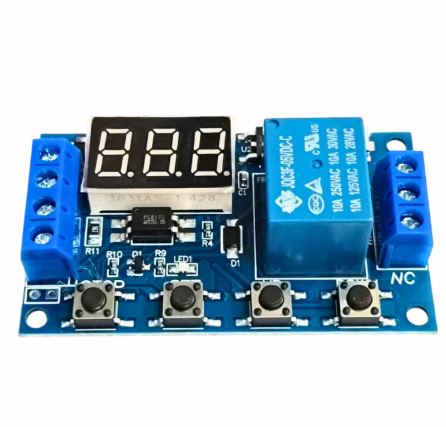

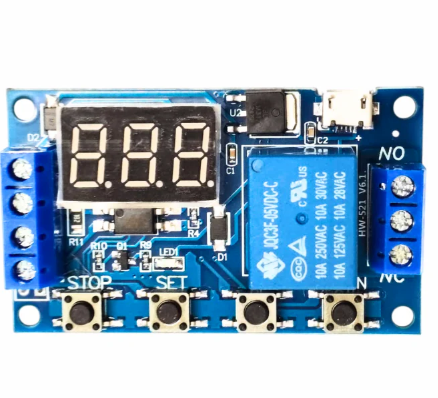

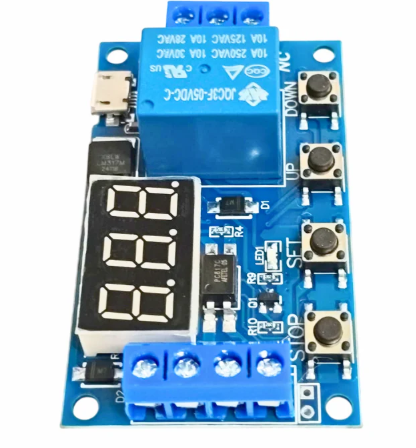

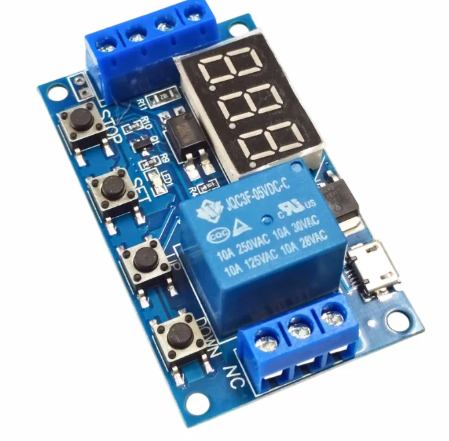

6-30V 1-Channel Adjustable Timing Relay Module
The 6-30V 1-Channel Adjustable Timing Relay Module is a programmable timer switch designed for precise control of electrical devices and automation systems. Featuring a wide input voltage range of 6V to 30V DC, this module offers multiple timing functions including delay ON, delay OFF, cycle timing, and trigger-controlled operation. Its bright digital display and intuitive button controls allow easy parameter setup without additional programming.
Ideal for DIY electronics, industrial automation, battery charging control, motor timing, smart home applications, and various embedded projects, this relay module provides reliable switching performance and flexible timing adjustment.
Features
- Wide operating voltage: 6V–30V DC
- High-quality 1-channel relay output
- Adjustable timing range from 0.1 second to 999 minutes
- Multiple programmable timing modes
- Easy-to-read LED digital display
- Simple button-based configuration
- Power-off memory function
- Trigger input support for external sensors or switches
- Compact PCB design for easy integration
Specifications
- Operating Voltage: 6V–30V DC
- Relay Channels: 1
- Timing Range: 0.1s – 999min
- Display Type: 3-Digit LED Display
- Trigger Signal: High-level trigger supported
- Output Type: Relay Contact Output
- Mounting Type: PCB Mount
Applications
- Motor control systems
- Automatic lighting control
- Battery charging/discharging timers
- Water pump automation
- Smart home projects
- Industrial control equipment
- DIY electronic projects
Package Includes:
- 1 × 6-30V 1-Channel Adjustable Timing Relay Module
