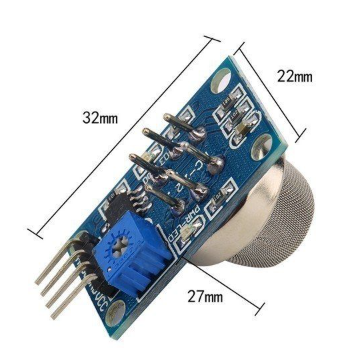

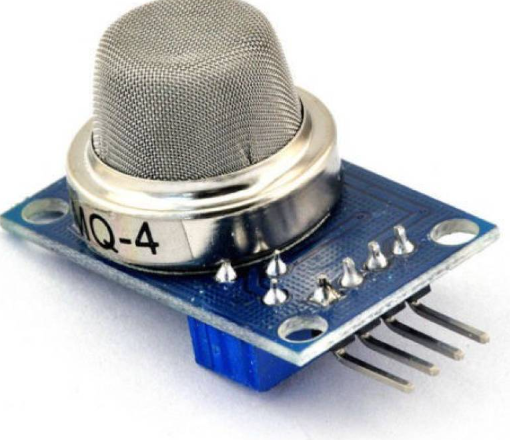

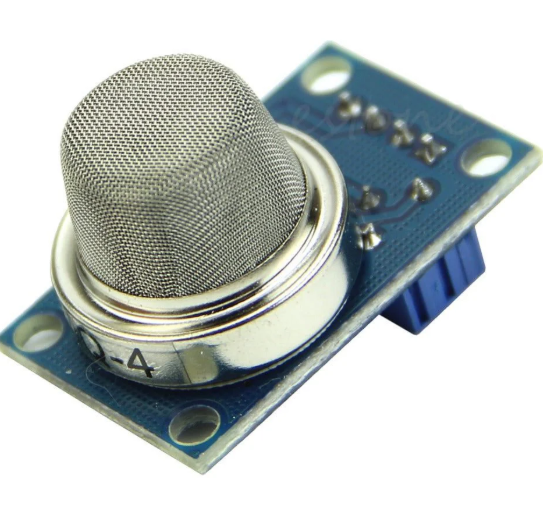

MQ-4 Natural Gas / Methane Gas Sensor Module

MQ-4 Natural Gas / Methane Gas Sensor Module

The MQ-4 Natural Gas Sensor is a highly sensitive gas detection module designed to detect Methane (CH₄), Compressed Natural Gas (CNG), and natural gas leaks. Built using a semiconductor sensing element, it provides fast response, reliable performance, and long operational life, making it ideal for gas leakage alarms, safety monitoring systems, and Arduino-based projects. The module offers both Analog and Digital outputs, allowing easy integration with microcontrollers such as Arduino, ESP32, Raspberry Pi, and other development boards. The sensitivity threshold can be adjusted using the onboard potentiometer for customized detection levels. Detection range is typically between 200–10,000 ppm for methane and natural gas.

Features

• Detects Methane (CH₄), Natural Gas, and CNG
• High sensitivity with fast response and recovery time
• Adjustable sensitivity via onboard potentiometer
• Analog (AO) and Digital (DO) output signals
• Compatible with Arduino, ESP32, Raspberry Pi, and other MCUs
• Long service life and stable performance
• Suitable for home and industrial gas leak detection applications

Specifications

• Operating Voltage: 5V DC
• Detection Gas: Methane (CH₄), Natural Gas, CNG
• Detection Range: 200–10,000 ppm
• Output Type: Analog and Digital
• Response Time: ≤10 seconds
• Recovery Time: ≤30 seconds
• Operating Temperature: -20°C to +55°C
• Humidity Range: ≤95% RH

Applications

• Gas leakage alarm systems
• Home safety monitoring
• Industrial gas detection
• Smart home automation
• Environmental monitoring projects
• Arduino and IoT-based gas sensing applications
