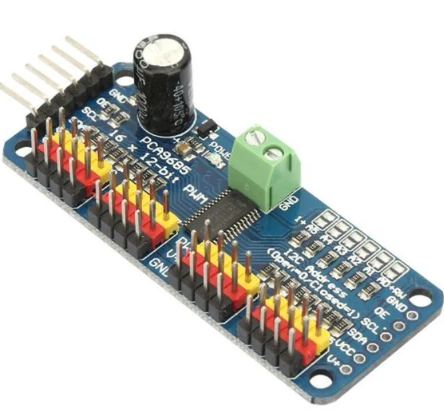

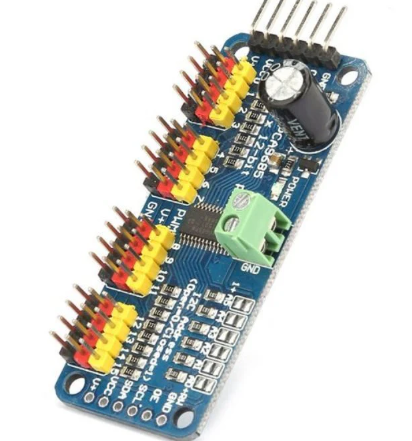

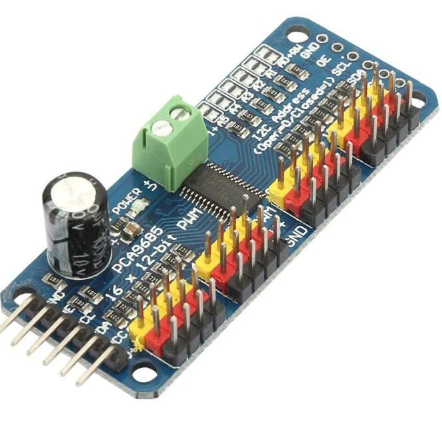

PCA9685 16-Channel PWM/Servo I2C Driver Module
The PCA9685 16-Channel PWM/Servo Driver Module is a powerful I2C-based controller designed to drive up to 16 servo motors, LEDs, or other PWM-controlled devices using only two communication pins (SDA & SCL). Featuring 12-bit PWM resolution (4096 steps), it delivers smooth and precise control while reducing the processing load on your microcontroller. Ideal for Arduino, Raspberry Pi, ESP32, STM32, and other development platforms, this module is perfect for robotics, automation, animatronics, RC projects, and LED lighting systems.

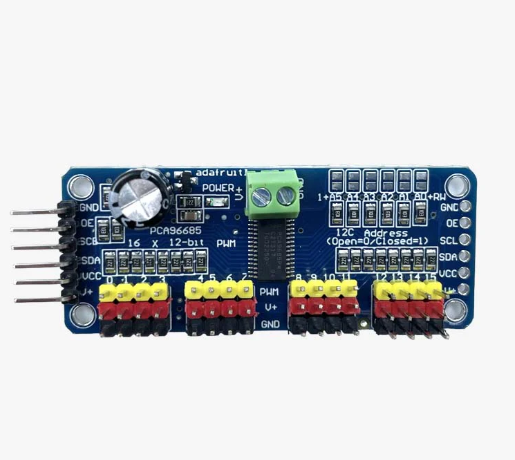

Key Features:
- 16 independent PWM output channels
- 12-bit resolution (4096 levels) for accurate control
- I2C communication interface (uses only SDA & SCL pins)
- Supports up to 62 modules on a single I2C bus (up to 992 outputs)
- Adjustable PWM frequency from approximately 24Hz to 1526Hz
- Compatible with 3.3V and 5V logic systems
- Dedicated external power input for servos
- Built-in oscillator for stable PWM generation
- Ideal for servo motors, LEDs, robotic arms, hexapods, and automation projects

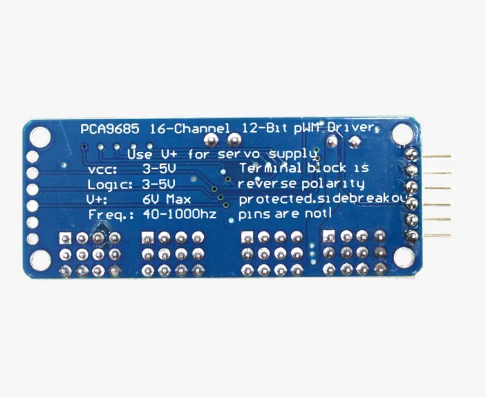

Specifications:
- Driver IC: PCA9685
- Channels: 16 PWM Outputs
- Resolution: 12-bit (0–4095)
- Communication Protocol: I2C
- Default I2C Address: 0x40
- Logic Voltage: 3.3V – 5V
- Servo Supply Voltage (V+): Up to 6V
- PWM Frequency Range: 24Hz – 1526Hz
- Maximum Expandability: 62 Modules (992 Outputs)
Package Includes:
- 1 × PCA9685 16-Channel PWM/Servo I2C Driver Module
