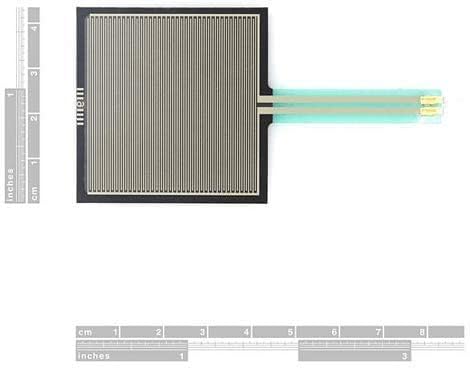

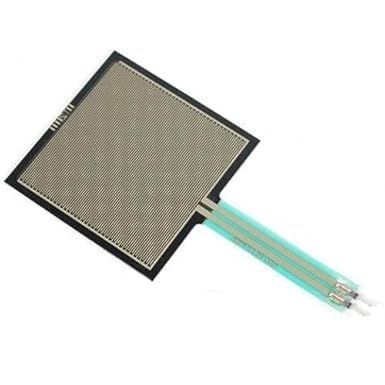

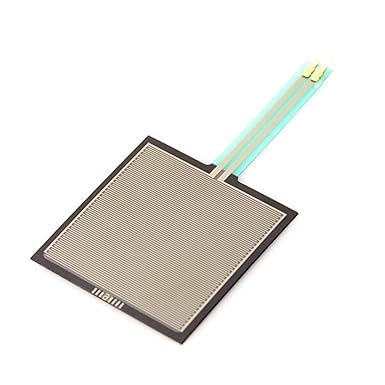

quare Force-Sensitive Resistor
The Square Force-Sensitive Resistor (FSR) is a thin, flexible pressure sensor that changes its resistance when force or pressure is applied to its sensing area. It is widely used in electronics, robotics, interactive projects, wearable devices, and Arduino-based applications for detecting touch, pressure, weight, and user interaction.
This sensor provides a simple and cost-effective way to measure varying levels of force. As the applied pressure increases, the resistance decreases, allowing easy integration with microcontrollers such as Arduino, ESP32, Raspberry Pi, and other development boards.
Features
- Square-shaped pressure-sensitive sensing area
- Thin, lightweight, and flexible design
- Resistance decreases with increasing applied force
- Easy interface with Arduino and microcontrollers
- Low power consumption
- Fast response time
- Durable and reliable construction
- Ideal for touch and pressure detection applications
Specifications
- Sensor Type: Force-Sensitive Resistor (FSR)
- Sensing Area: Square
- Output: Variable resistance based on applied force
- Operating Voltage: Compatible with 3.3V and 5V systems
- Response Time: < 1 ms (typical)
- Thickness: Ultra-thin flexible film
- Interface: Analog signal through voltage divider circuit
Applications
- Pressure sensing systems
- Electronic weighing and force measurement
- Robotics and gripper force detection
- Interactive touch interfaces
- Smart wearables
- Medical and rehabilitation devices
- Gaming controllers
- DIY electronics and educational projects
Package Includes
- 1 × Square Force-Sensitive Resistor (FSR)
