TB6612FNG Dual DC Motor Driver

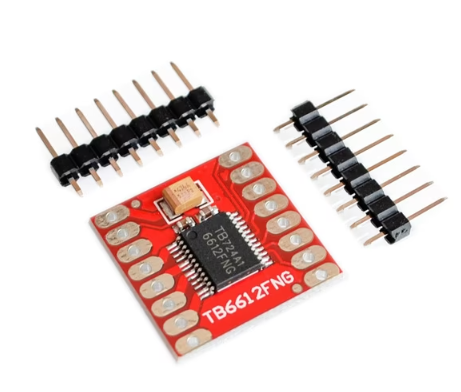

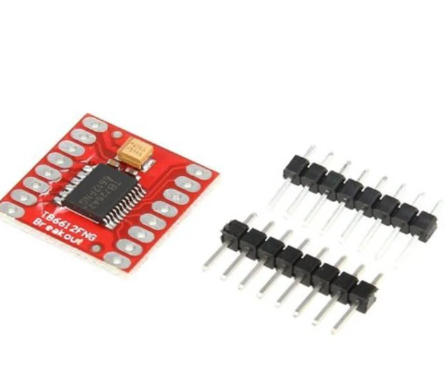

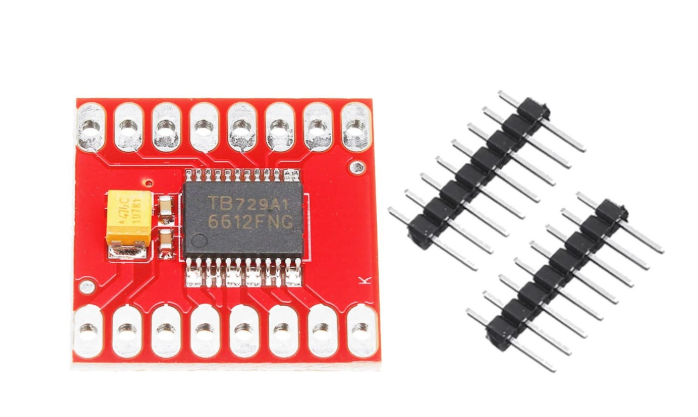

TB6612FNG Dual DC Motor Driver Module

The TB6612FNG Dual DC Motor Driver Module is a compact and high-efficiency motor driver designed to control two DC motors or one bipolar stepper motor simultaneously. Built around the Toshiba TB6612FNG H-Bridge IC, this driver offers superior performance compared to traditional L298N drivers, thanks to its low-resistance MOSFET architecture, lower heat generation, and higher efficiency. It is an excellent choice for robotics, smart vehicles, automation projects, and Arduino-based applications.

With support for PWM speed control and directional motor control, the TB6612FNG delivers smooth and precise motor operation while maintaining low power consumption. Its built-in protection features, including thermal shutdown and low-voltage detection, help ensure reliable performance in demanding applications.

Key Features

• Controls 2 DC motors independently or 1 stepper motor
• Continuous output current up to 1.2A per channel
• Peak current up to 3.2A per channel
• MOSFET-based H-Bridge design for higher efficiency
• Supports PWM speed control up to 100kHz
• Motor control modes: Forward, Reverse, Brake, and Stop
• Built-in thermal shutdown and low-voltage protection
• Low standby power consumption
• Compact size ideal for robotics and embedded projects
• Compatible with Arduino, ESP32, Raspberry Pi, STM32, and other microcontrollers

Specifications

Applications

• Line Following Robots
• Obstacle Avoidance Robots
• Smart Cars and RC Projects
• DIY Automation Systems
• Stepper Motor Control
• Arduino and Raspberry Pi Projects
• Educational and STEM Projects

Package Includes

• 1 × TB6612FNG Dual DC Motor Driver Module
